What is timing?
Timing ensures that the suppressor is properly aligned. Proper timing means best performance and safe alignment. Every Revolver Seal suppressor ships with all shims pre-installed, totaling 370°, so perfect timing is always possible.
Shim system overview

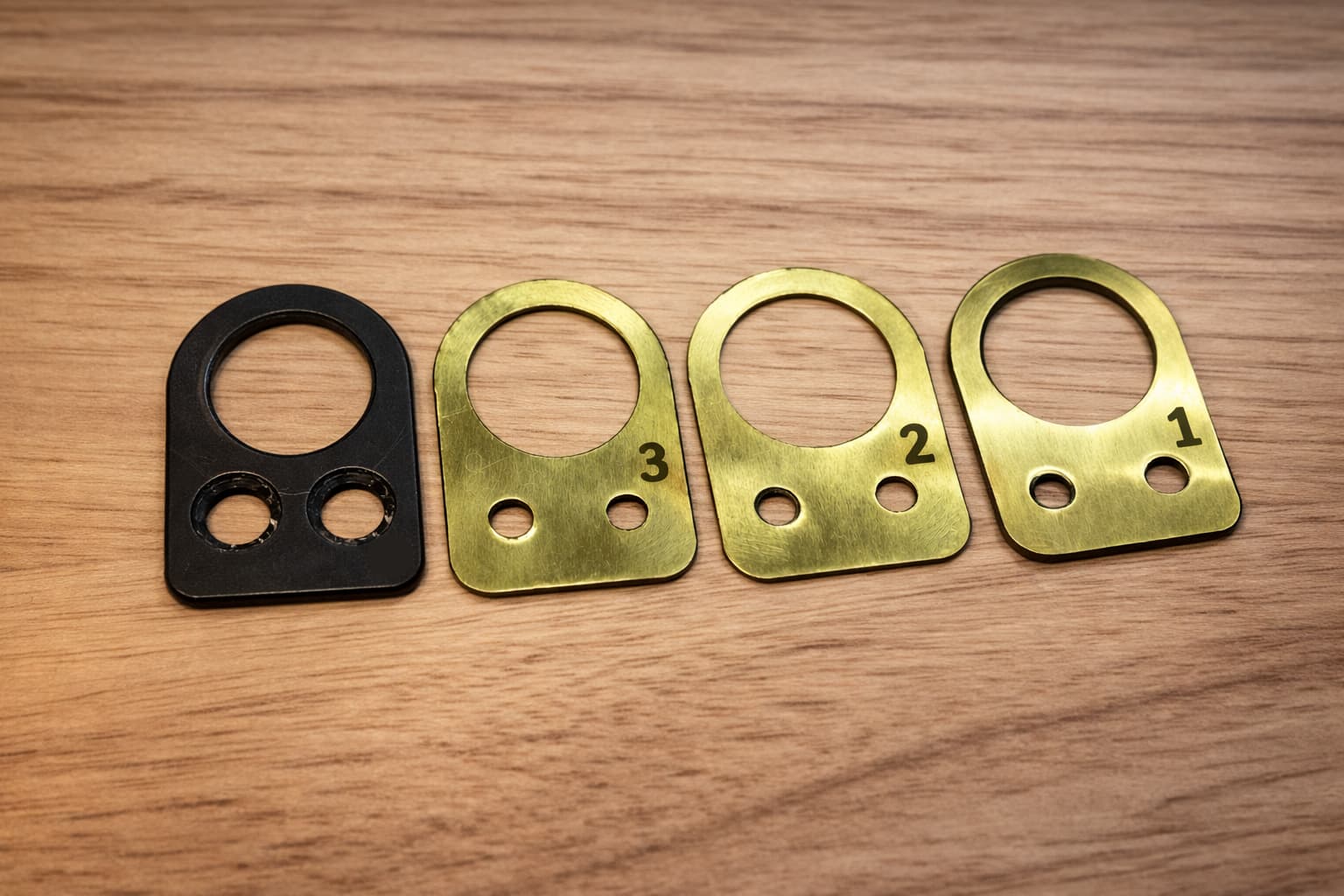

Each suppressor includes three shim sizes: Shim 1 (10°), Shim 2 (30°), and Shim 3 (50°). Shims can be removed or rearranged to achieve perfect timing.
Step 1: Thread the suppressor on (as shipped)

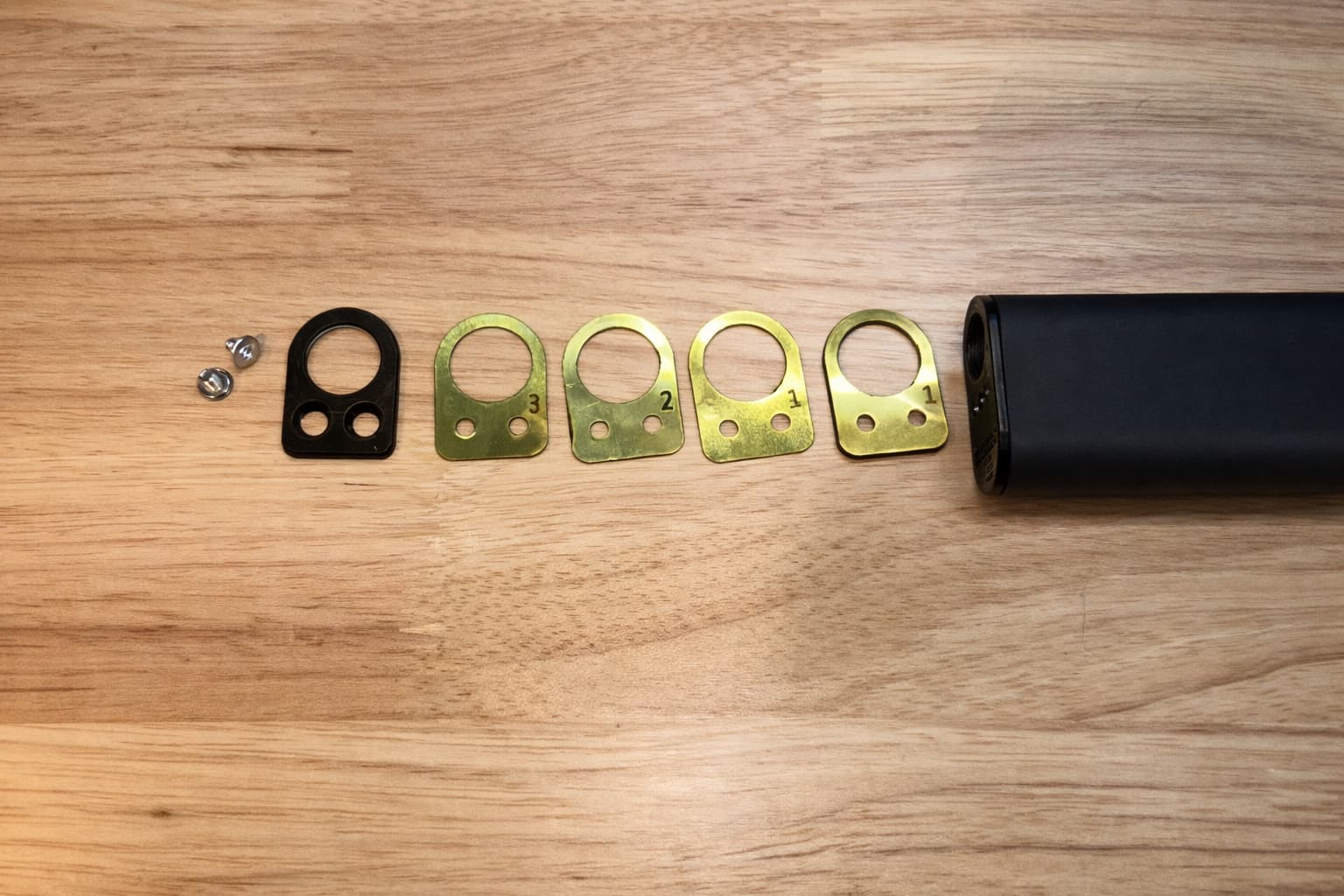

Thread the suppressor onto the barrel with all shims installed. Hand-tighten until it stops, then check the final alignment.
Step 2: Check the timing

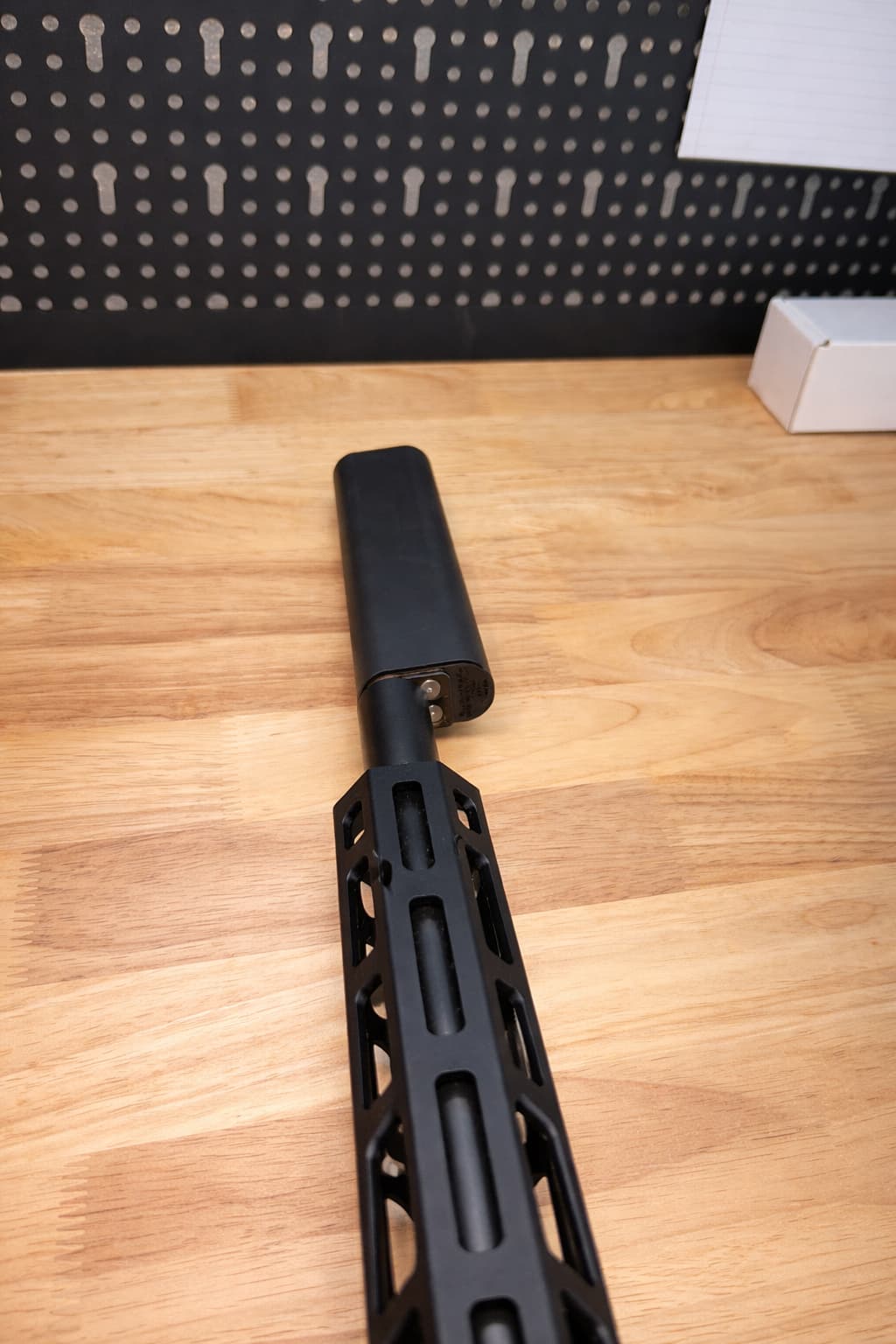

If timing is correct, you're done. If the suppressor is not aligned, adjustment is needed (as shown in the image).
Step 3: Adjust shim stack

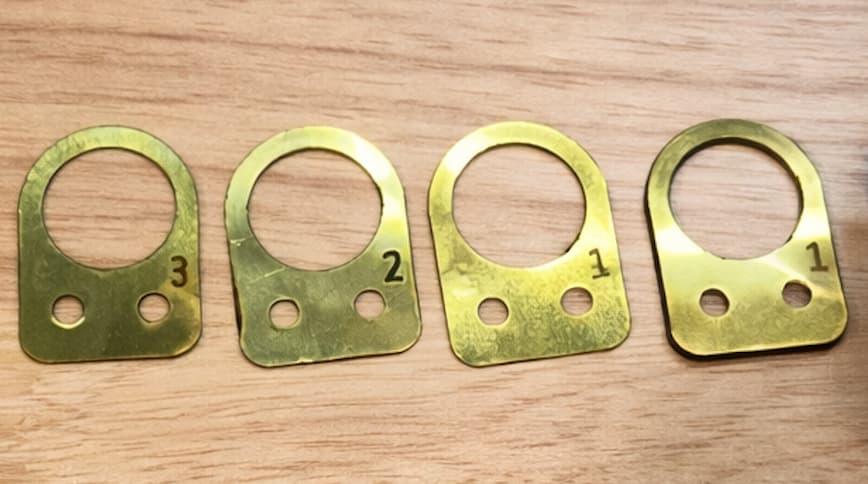

Remove the suppressor from the gun. Remove shims to change the angle, then reinstall and check timing again. Small adjustment → Shim 1 (10°). Medium adjustment → Shim 2 (30°). Large adjustment → Shim 3 (50°).
Step 4: Fine-tune
Reinstall onto the gun after each adjustment. Repeat until perfectly aligned.
Step 5: Verify final alignment

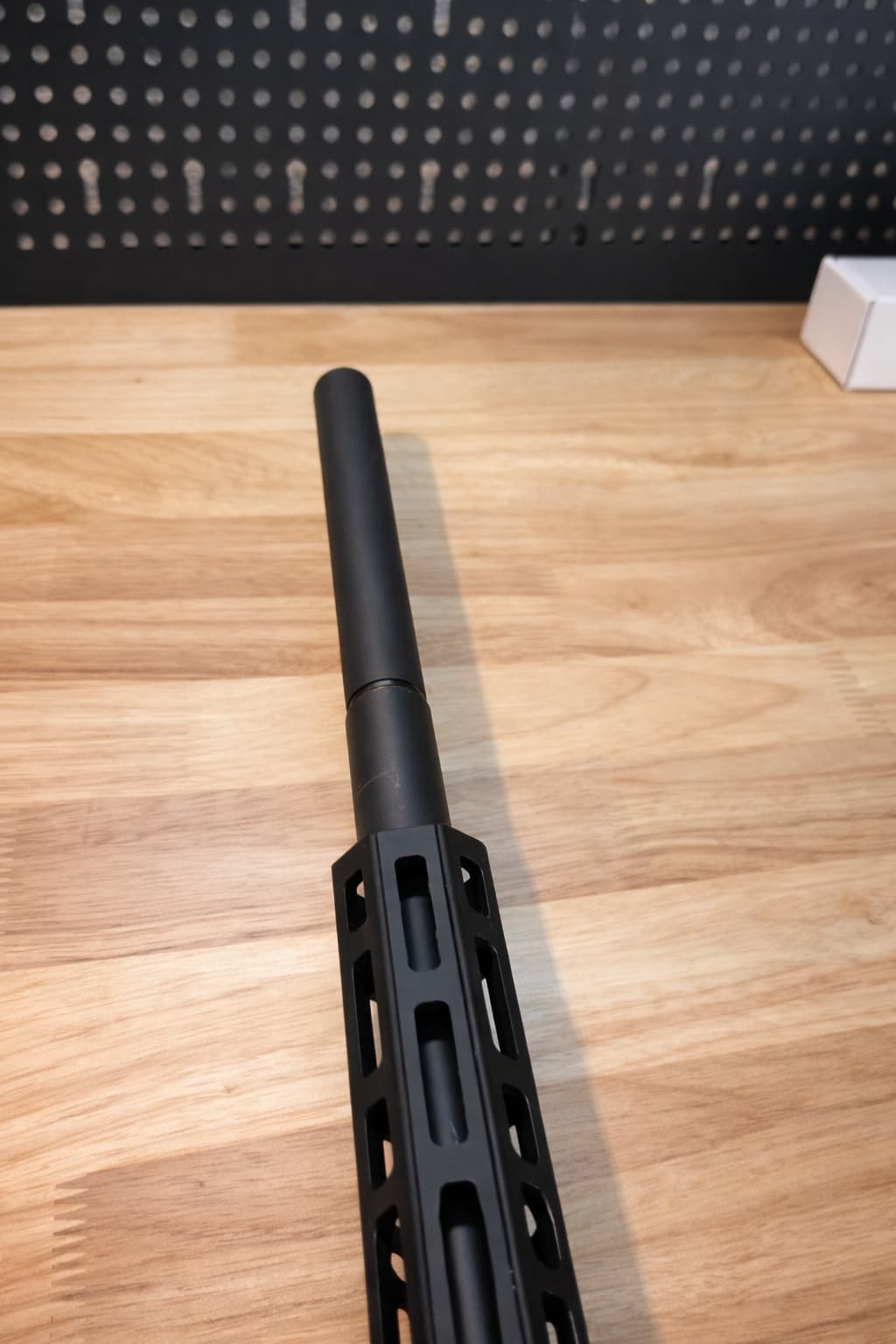

The suppressor should stop at the correct orientation. Do not force past hand-tight. Proper timing achieved.
Why this system works
Ships ready to install. 370° of total shim coverage. Adjustments in 10° increments. No grinding, no guesswork.
Quick tips
Always test timing as shipped first. Make small changes before large ones. Hand-tight is sufficient for setup and display.
